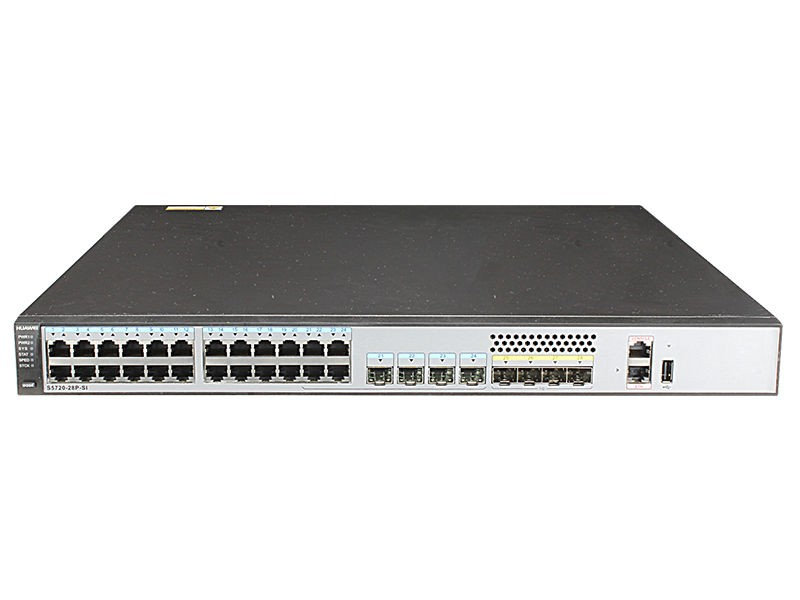

S5720-28P-SI-AC Specification
|
|
Fixed Port
|
24 × Ethernet 10/100/1000 ports,
4 of which are dual-purpose 10/100/1000 or SFP
|
|
MAC address table
|
IEEE 802.1d compliance
|
|
MAC address learning and aging
|
|
Static, dynamic, and blackhole MAC address entries
|
|
Packet filtering based on source MAC addresses
|
|
MAC address entries: S5700-SI series - 16K
|
|
VLAN
|
4K VLANs
|
|
Guest VLAN and voice VLAN
|
|
GVRP
|
|
MUX VLAN
|
|
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
|
|
1:1 and N:1 VLAN Mapping
|
|
SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
|
|
Ring protection
|
RRPP ring topology and RRPP multi-instance
|
|
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
|
|
SEP
|
|
ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
|
|
STP, RSTP, and MSTP
|
|
BPDU protection, root protection, and loop protection
|
|
BPDU Tunnel
|
|
Reliability
|
Ethernet OAM (IEEE 802.3ah and 802.1ag)
|
|
ITU-Y.1731
|
|
DLDP
|
|
LACP
|
|
E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)
|
|
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
|
|
MPLS features
|
MPLS L3VPN
|
|
MPLS L2VPN(VPWS/VPLS)
|
|
MPLS-TE
|
|
MPLS QoS
|
|
Notes: supported by S5710-EI, S5700-HI and S5710-HI
|
|
IP routing
|
Static routing
|
|
RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)
|
|
OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
|
|
IPv6 features
|
Neighbor Discovery (ND)
|
|
Path MTU (PMTU)
|
|
IPv6 ping, IPv6 tracert, and IPv6 Telnet
|
|
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
|
|
MLD v1/v2 snooping
|
|
6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
|
|
Multicast
|
IGMP v1/v2/v3 snooping and IGMP fast leave
|
|
Multicast forwarding in a VLAN and multicast replication between VLANs
|
|
Multicast load balancing among member ports of a trunk
|
|
Controllable multicast
|
|
Port-based multicast traffic statistics
|
|
IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
|
|
QoS/ACL
|
Rate limiting on packets sent and received by an interface
|
|
Packet redirection
|
|
Port-based traffic policing and two-rate three-color CAR
|
|
Eight queues on each port
|
|
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
|
|
WRED (supported by the S5710-EI and S5700-HI)
|
|
Re-marking of the 802.1p priority and DSCP priority
|
|
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination
MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
|
|
Rate limiting in each queue and traffic shaping on ports
|
|
Security
|
User privilege management and password protection
|
|
DoS attack defense, ARP attack defense, and ICMP attack defense
|
|
Binding of the IP address, MAC address, interface, and VLAN
|
|
Port isolation, port security, and sticky MAC
|
|
MFF
|
|
Blackhole MAC address entries
|
|
Limit on the number of learned MAC addresses
|
|
802.1x authentication and limit on the number of users on an interface
|
|
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
|
|
SSH v2.0
|
|
Hypertext Transfer Protocol Secure (HTTPS)
|
|
CPU defense
|
|
Blacklist and whitelist
|
|
Access Security
|
DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
|
|
Management and maintenance
|
Virtual cable test
|
|
Port mirroring and RSPAN (remote port mirroring)
|
|
Remote configuration and maintenance using Telnet
|
|
SNMP v1/v2c/v3
|
|
RMON
|
|
Web NMS
|
|
HGMP
|
|
System logs and alarms of different levels
|
|
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
|
|
Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)
|
|
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)
|
|
sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
|
|
Interoperability
|
Supports VBST (Compatible with PVST/PVST+/RPVST)
|
|
Supports LNP (Similar to DTP)
|
|
Supports VCMP (Similar to VTP)
|
|
Operating environment
|
Operating temperature: 0℃–50℃
|
|
Relative humidity: 10%–90% (non-condensing)
|
|
Input voltage
|
AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
|
|
Dimensions (W x D x H)
|
44.2 cm x 42 cm x 4.44 cm
|
